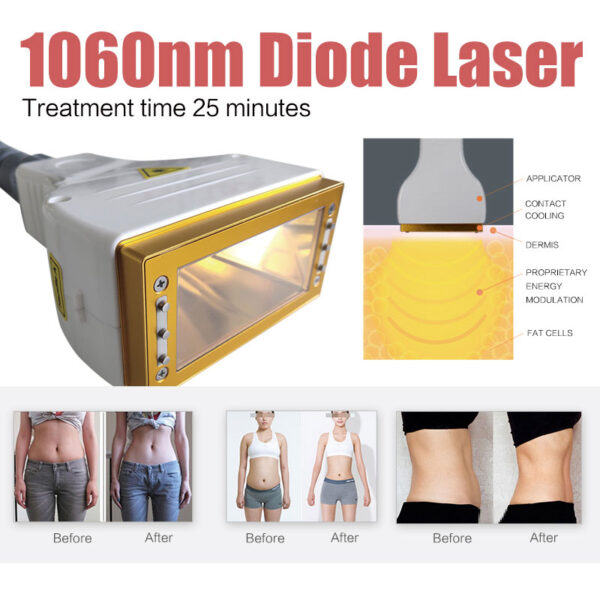

Product Details: 1060nm Diode Laser Body Sculpting System
Product Name: 1060nm Diode Laser Body Sculpting System (Model: RZ-01 / Sculplase Series)
Material: The device features a premium medical-grade, high-impact ABS chassis with a reinforced internal metal support structure for long-term stability. The treatment applicators are equipped with Real Sapphire contact cooling surfaces to ensure instantaneous, delay-free thermal protection. The system includes medical-grade high-elasticity belts for secure, hands-free fixation of the four handpieces.

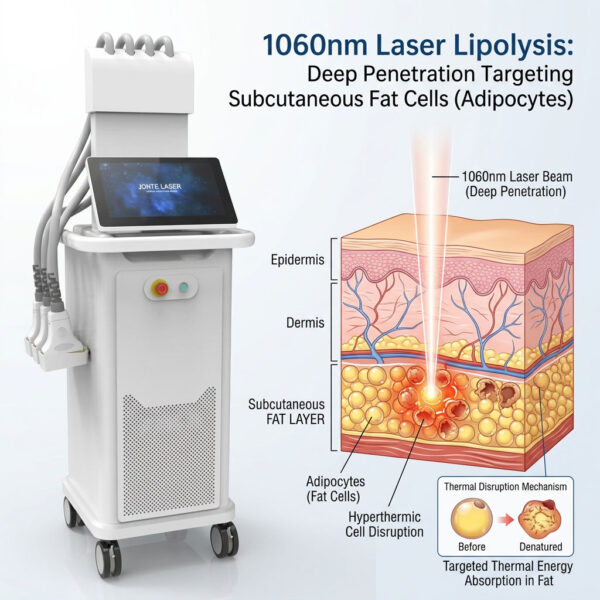

Function: Utilizing the 1060nm wavelength’s specific affinity for adipose tissue, this system provides a high-efficiency solution for:
- Non-Invasive Lipolysis:Targeting and destroying subcutaneous fat cells through controlled thermal energy.
- Permanent Fat Reduction:Clinical studies show an average of 24% fat reduction in the treated area per single 25-minute session.

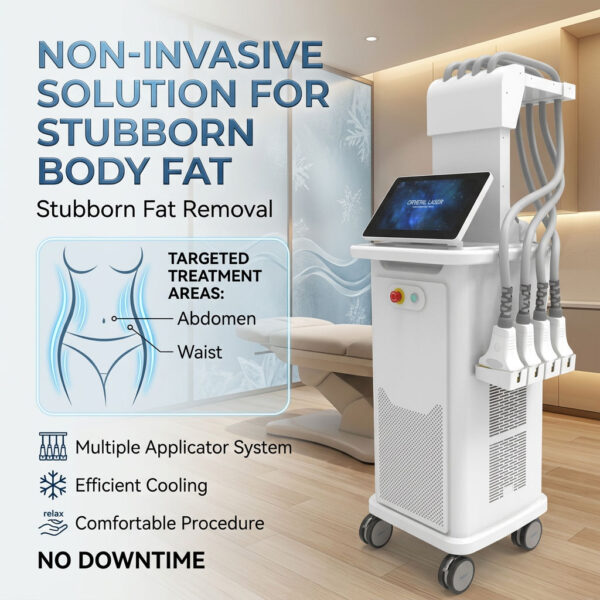

- Body Contouring:Specialized for stubborn fat in the waist (love handles), abdomen, upper arms, and thighs.
- Skin Tightening:The secondary thermal effect promotes collagen contraction, improving skin laxity in the treatment area.
Specifications:
- Laser Type:Diode Laser
- Wavelength:1064nm (optimized for fat absorption)
- Power Density:1W – 1.8W/cm² (Adjustable)
- Applicator Quantity:4 independent handpieces for simultaneous treatment
- Applicator Size:40mm x 80mm
- Energy Output:60W per applicator (240W total peak power)
- Cooling System:Integrated Sapphire contact cooling + Advanced water/air cycle heat dissipation
- Cooling Levels:5 adjustable levels (Min 18°C)
- Treatment Time:Default 20–25 minutes (Adjustable)
- Interface:15-inch Large HD Intelligent Touch Screen (1366 x 768px)
- Net Weight:70kg

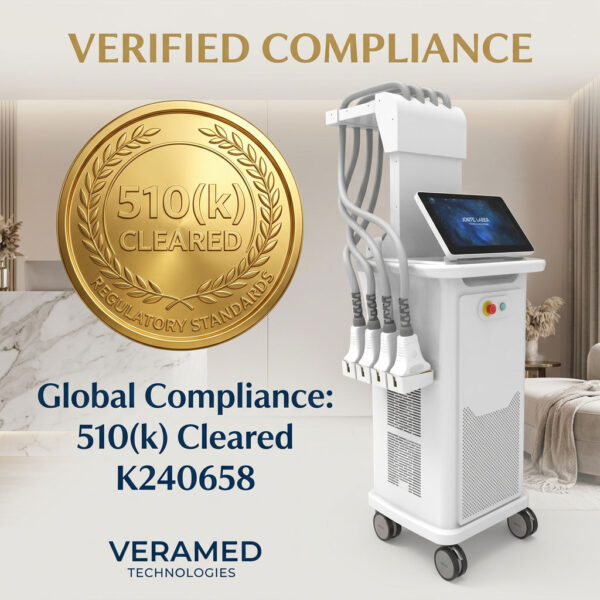

Standards: Manufactured under the ISO 13485 quality management system. The architecture is designed to comply with global medical standards including USA FDA, and ANVISA, ensuring legal compliance and clinical safety in international markets.
Application: Optimized for professional environments, including Medical Aesthetic Hospitals, Plastic Surgery Centers, High-end Medical Spas, and Weight Loss Clinics. Suitable for all skin types (Fitzpatrick I-VI) due to minimal melanin absorption at the 1060nm wavelength.
Key Advantages:
- Unmatched Clinical Efficacy:Permanent destruction of fat cells without surgery, with a patient satisfaction rate exceeding 90%.

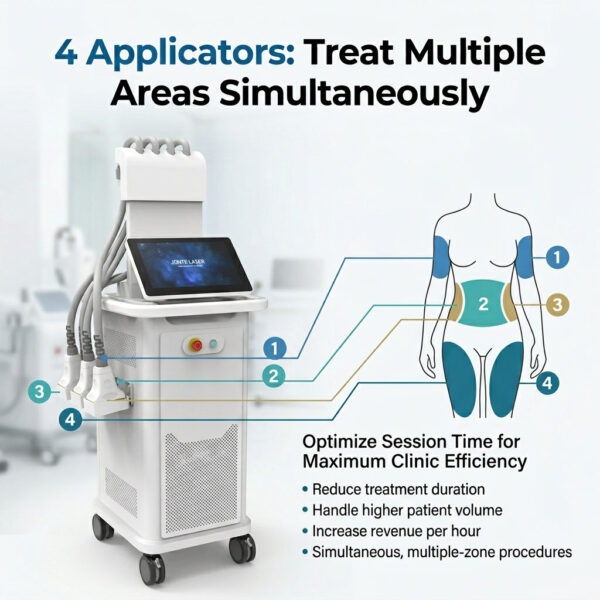

- Hands-Free Multi-Zone Treatment:4 applicators can work simultaneously on different body parts, significantly increasing clinic efficiency and patient throughput.
- “Comfort-First” Technology:Advanced sapphire cooling maintains the skin surface at a comfortable 32°C–35°C while target tissue reaches 42°C–47°C for effective apoptosis.
- Zero Downtime:Patients can return to normal activities immediately after the 25-minute “lunchtime procedure.”
- High ROI for Practices:Features a built-in RF ID/IC management system for flexible business models (membership cards, rentals, etc.), and the Android OS supports UI customization.
Customization / OEM Service: JT MED offers comprehensive OEM/ODM solutions for the 1060nm platform. Services include bespoke industrial casing design (color/logo), customized software UI (icons, multi-language support), tailored applicator configurations, and full technical documentation for regional market medical device registration.
